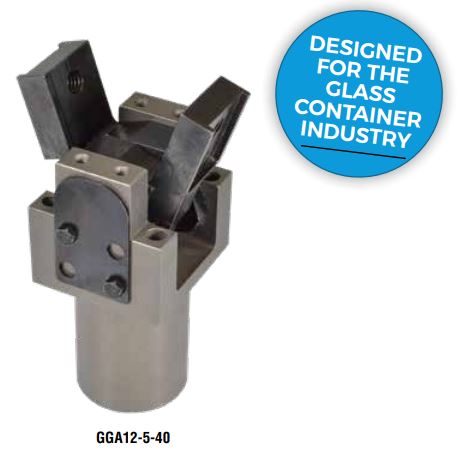

phd Gripdon Glas (phd GGA12-5-40)
GGA
Major Benefits
The design of the new GGA Glass Gripper incorporates a cam
slot that provides a locking ramp which locks in place when
jaws are fully open. In addition, it has a cushioning through the
cam slot design which also provides a very smooth closing.
• Mechanical Locking: Gripper jaws are locked on full
open, thus eliminating jaws and tooling being exposed
to additional moments of inertia during gob/bottle
transfer onto the conveyor. This is called Anti-Wink Function
which reduces the risk of damaging the container mouth rim.
• More Grip Force: The theoretical grip force with the jaws at
parallel is about 347 N at 6 bar [78 lb at 87 psi] and 85 N at
2 bar [19 lb at 29 psi].
• Cam Slot Design: Provides for precise jaw closing and
opening, minimizing damage to the bottle necks. For
consistent, repeatable pick up. No pin breaks or jaw play!
• Drop-in Replacement: On popular glass bottle forming
machines
• Engineered Solution: Designed for more than 10 million
cycles
• Less Downtime: Easily field repairable, less parts, spare parts
available upon request (maintenance interval varies based on
local environment)
SPECIFICATIONS GGA12-5-40
WEIGHT: 30,4 oz [862 g]
BORE: 40 mm
JAWS OPEN ANGLE: 37,4°
JAWS FULL CLOSE ANGLE: -5°
OPERATING PRESSURE: 2 to 6 bar
JAW MATERIAL: Pre-hardened steel
BODY: Coated
SPRING OPEN: Spring installed between body and piston
ROD SCRAPER: High-temp (standard
