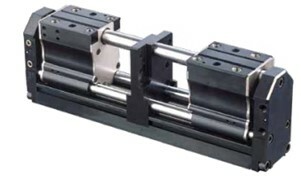

phd GRR Gripdon (phd GRR12-6-63x150-V1-Z1-H47)
GGR är phd´s gripdon med längsta slaglängden för extrema applikation.
Slaglängd= 150 mm
Gripkraft= 3131N
V1= FKM (Viton) packningar
Z1= Korrosionsskydd på utsatta delar
H47= Rodlock (låsning vid luftbortfall)

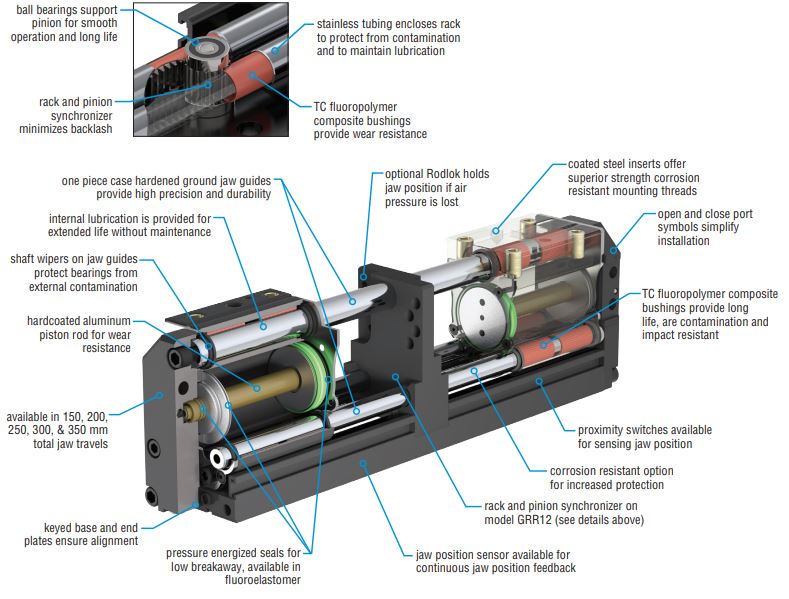

Major Benefits
• Narrow width and a wide range of available jaw travels.
• Compact design provides high grip force and large
moment capacities with low overall weight.
• Rugged build withstands high impact and shock loads.
• Double acting for both internal and external gripping.
• Unique dual air-passage piston rod design promotes
rapid bore pressurization for short cycle times.
• Three large diameter jaw guides spanning the length
of the gripper provide stable jaw travel, long allowable
tooling length, and high moment capacities.
