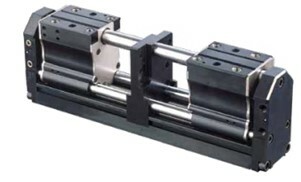

phd GRR Gripdon ( phd GRR12-6-63x200)

GGR är phd´s gripdon med längsta slaglängden för extrema applikation.

Slaglängd= 200mm
Gripkraft= 3131N

(Ingen låsning vid luftbortfall)

Reservdel artikel: 99415

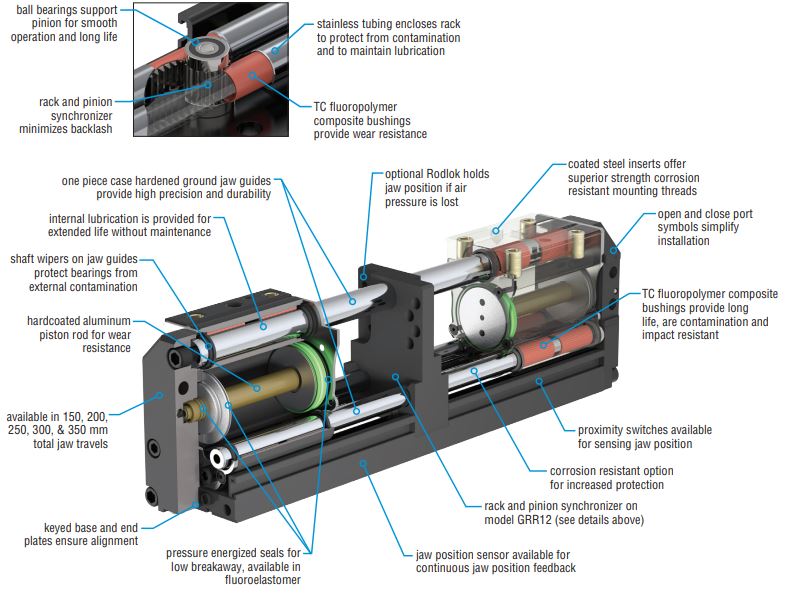

Major Benefits

• Narrow width and a wide range of available jaw travels.
• Compact design provides high grip force and large
moment capacities with low overall weight.
• Rugged build withstands high impact and shock loads.
• Double acting for both internal and external gripping.
• Unique dual air-passage piston rod design promotes
rapid bore pressurization for short cycle times.
• Three large diameter jaw guides spanning the length
of the gripper provide stable jaw travel, long allowable
tooling length, and high moment capacities.
