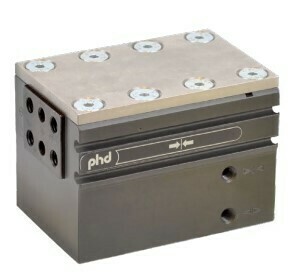

phd GRS 33 Gripdon (phd GRS33-6-32x8-L11-UB99-FSR2)
GRS är kompakt och kraftfull.
Slaglängd= 8 mm
Gripkraft= 485 N
Förberedd för givare
Gripdon med låg profil

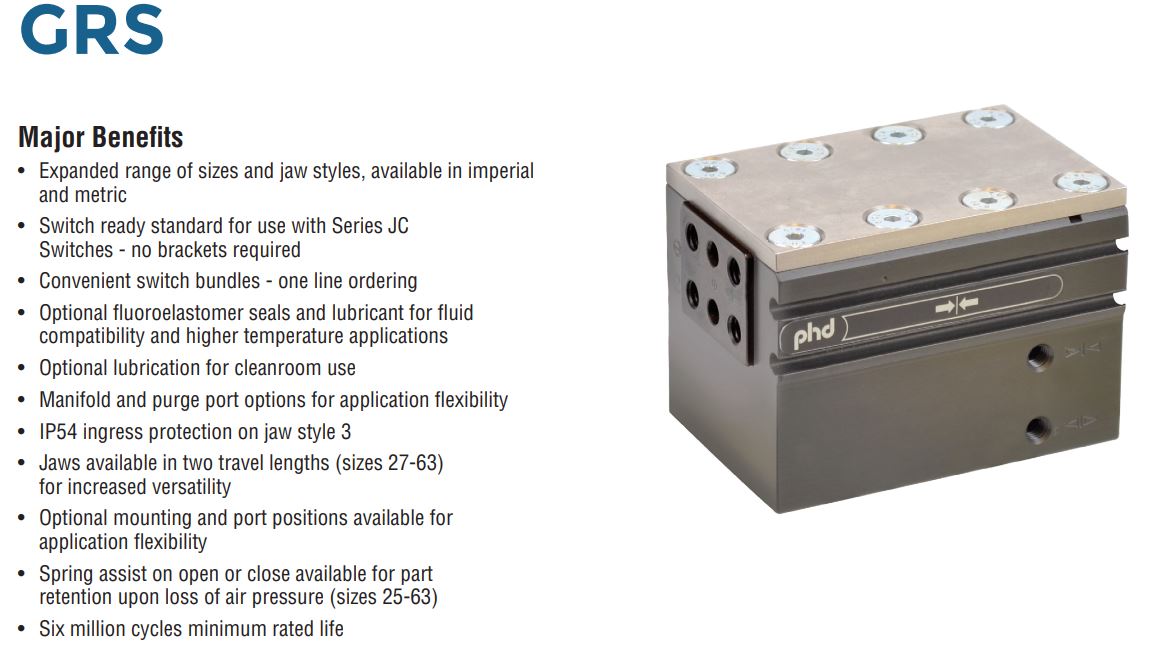

Major Benefits
• Expanded range of sizes and jaw styles, available in imperial
and metric

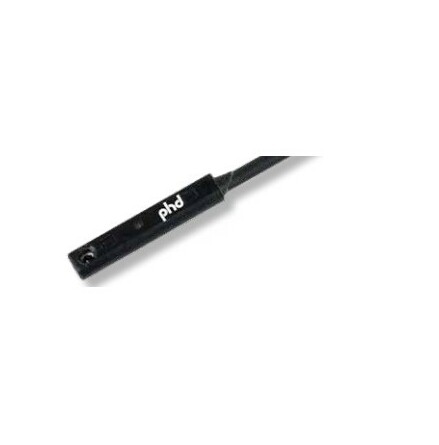

• Switch ready standard for use with Series JC
Switches - no brackets required
• Convenient switch bundles - one line ordering
• Optional fluoroelastomer seals and lubricant for fluid
compatibility and higher temperature applications
• Optional lubrication for cleanroom use
• Manifold and purge port options for application flexibility
• IP54 ingress protection on jaw style 3
• Jaws available in two travel lengths (sizes 27-63)
for increased versatility
• Optional mounting and port positions available for
application flexibility
• Spring assist on open or close available for part
retention upon loss of air pressure (sizes 25-63)
• Six million cycles minimum rated life
